- High Rigidity Needle Roller Stripper Guide Set
- High Rigidity Needle Roller Stripper Guide Set-HRSGPS
- Product Specification
- Product Characteristics
- Why you must choose HEADWAY
| HRSGPS | 16 | 70 | 40 |
|---|---|---|---|
| | | | | | | | |
| Model | External Diameter of Guide Post D | Length of Guide Post LA | Length of Guide Post LB |
- By securing the guide pin to the stripper plate near the blade (punch and die).
- The guide posts are fully hardened to enhance their durability.
- The contact area of the needle rollers is several times larger than that of steel balls, achieving rigidity close to sliding guidance, and has rigidity and precision that cannot be achieved with steel ball guidance.
- Concentricity within 3mm.
- For LBT, high rigidity steel ball bushings (HWC001), steel ball bushing guide sleeves (SGBBW), or precision-grade oilless bushings (HWC002) are applicable.
| Component | ||
|---|---|---|
| Name | Material | Hardness |
| ① Guide Post | SKS3 | 60~62 HRC |
| ② Guide Bushing | SKS3 | 60~62 HRC |
| ③ Needle Roller Retainer | Needle(POM): SUJ2 | - |
| Retainer: Super Engineering Plastic |
||
| D | LA | LB Unit 10mm |

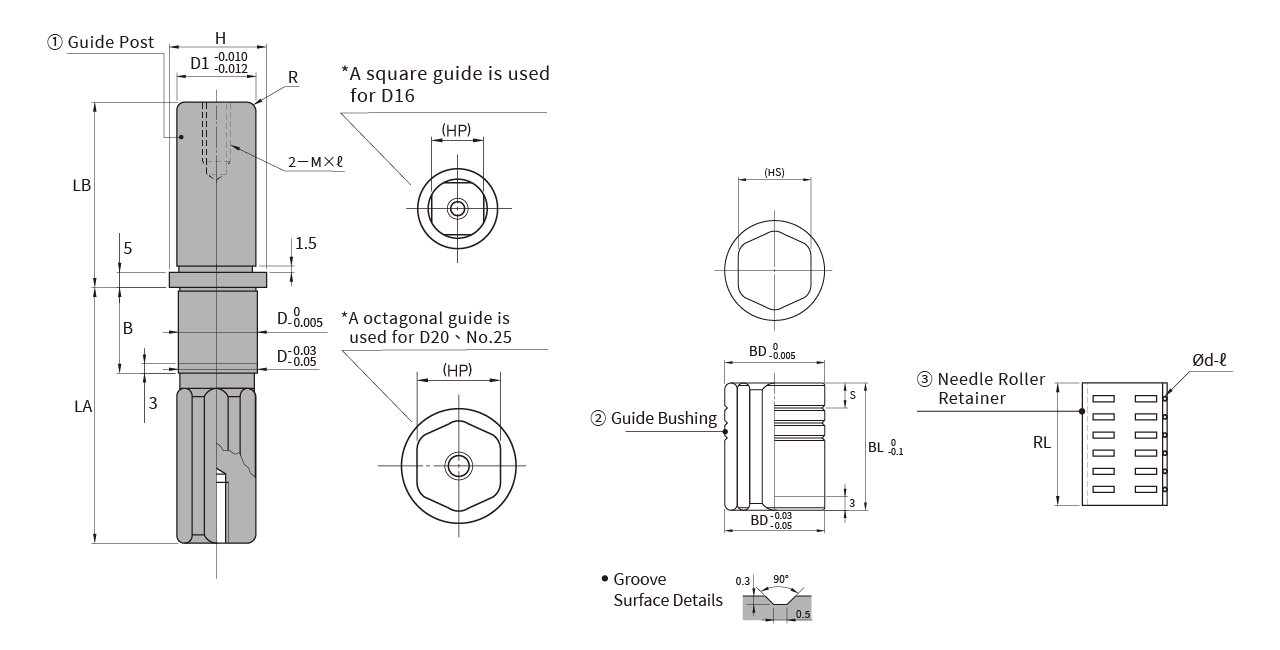

① Guide Post | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | B | R | M×ℓ | H | (HP) | |||||||
| 16 | 70 | 40~60 | 16.5 | 16 | 1.5 | M6×15 | 23 | 14.5 | ||||
| 80 | 40~70 | |||||||||||
| 90 | 50~80 | |||||||||||
| 20 | 80 | 50~70 | 20.5 | 20 | 2 | M8×20 | 27 | 19 | ||||
| 90 | 50~80 | |||||||||||
| 100 | 60~90 | |||||||||||
| 25 | 90 | 60~80 | 25.5 | 25 | 3 | 32 | 24 | |||||
| 100 | 60~90 | |||||||||||
| 110 | 70~90 | |||||||||||
| D | ② Guide Bushing | ③ Needle Roller Retainer | ||||||
|---|---|---|---|---|---|---|---|---|
| BD | BL | (HS) | S | Number of Slots | RL | d | 𝓁 | |
| 16 | 28 | 40 | 18.5 | 7 | 3 | 30 | 2.0 | 6.8 |
| 20 | 34 | 50 | 23 | 46 | ||||
| 25 | 40 | 60 | 28 | 8 | 56 | 7.8 | ||
Features
1.High Rigidity and High Accuracy
By securing the guide pin to the stripper plate near the blade (punch and die), the shaft's rigidity is significantly increased compared to traditional fixing methods, allowing for high-precision punching and enhanced durability. Moreover, the improved reliability of the guide system contributes to a longer lifespan of the die.
2. High Durability
The guide posts are fully hardened to enhance their durability.
3. Three Guide Types Are Available
| Guiding Method | Features |
|---|---|
| Needle Roller Guiding | The contact area of the needle rollers is several times larger than that of steel balls, achieving rigidity close to sliding guidance, and has rigidity and precision that cannot be achieved with steel ball guidance. |
| Steel Ball Guiding | By using high-rigidity steel ball bushes (HWC002/HWC001), it is possible to achieve rigidity close to sliding guidance at low cost, and it is possible to handle high speeds. |
| Slide Guiding | Can choose from a wide variety of sliding guide sleeves (SUJ2, copper alloy, and oiless series). |

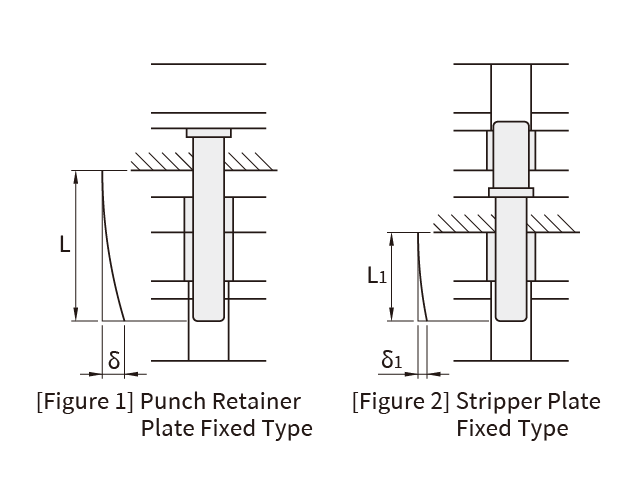

From the calculation formula used for beams: Defelction S=WL/ 3EI
From the calculation formula used for beams: Defelction S=WL/ 3EI Since deflection is proportional to the cube of the post length,
the guide post type fixed to the stripper plate offers greater rigidity due to its shorter length. [Figure 2]
